- 規格型號：72580520
- 頻率：19.2MHz
- 尺寸：2016
- 產品描述：Abracon高精度晶振,ABM11AIG超小型晶振,ABM11AIG-19.200MHZ-J4Z-T3車載香薰系統晶振，美國Abracon晶振公司，艾博康晶振，ABM11AIG晶振，ABM11AIG-19.200MHZ-J4Z-T3晶振，進口晶振，無源晶振，美國晶振，高品質晶振，低...
Abracon高精度晶振,ABM11AIG超小型晶振,ABM11AIG-19.200MHZ-J4Z-T3車載香薰系統晶振
.jpg)
Abracon高精度晶振,ABM11AIG超小型晶振,ABM11AIG-19.200MHZ-J4Z-T3車載香薰系統晶振，美國Abracon晶振公司，艾博康晶振，ABM11AIG晶振，ABM11AIG-19.200MHZ-J4Z-T3晶振，進口晶振，無源晶振，美國晶振，高品質晶振，低損耗晶振，高精度晶振，2520晶振，四腳晶振，石英晶體，貼片晶振。適用于RoHS回流配置文件，AEC-Q200合格，汽車等級1:-40°C至+125°C，汽車等級0:-40°C至+150°C(可根據要求提供)，TS16949生產線認證，PPAP可根據要求提供，密封密封陶瓷封裝，符合RoHS/RoHS II標準且不含鉛，信息娛樂系統，無鑰匙進入和啟動，GPS和導航，舒適控制，ADAS(高級駕駛輔助系統)，車對車通信，激光雷達(光探測和測距)，車載網絡。

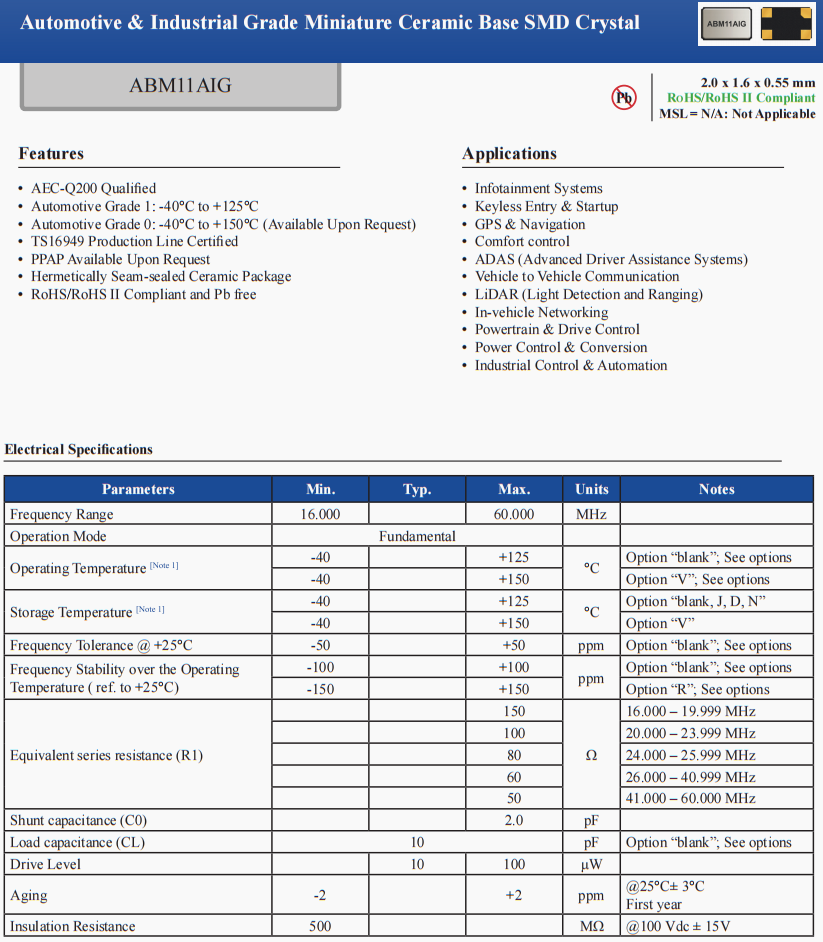

| 參數 | Min. | Typ. | Max. | Units | Notes |
| 頻率范圍 | 16.000 | 60.000 | MHz | ||
| 工作模式 | Fundamental | ||||
| 工作溫度 | -40 | +125 | °C | Option “blank”; See options | |
| -40 | +150 | Option “V”; See options | |||
| 儲存溫度 | -40 | +125 | °C | Option “blank,J,D, N” | |
| -40 | +150 | Option “V” | |||
| 頻率容差 | -50 | +50 | ppm | Option “blank”; See options | |
| 頻率穩定度 | -100 | +100 | ppm | Option “blank”; See options | |
| -150 | +150 | Option “R”; See options | |||
| 分流電容 | 2.0 | pF | |||
| 輔助電容 | 10 | pF | Option “blank”; See options | ||
| 驅動電平 | 10 | 100 | μW | ||
| 老化 | -2 | +2 | ppm | @25°C± 3°C First year | |
| 絕緣電阻 | 500 | MΩ | @100 Vdc ± 15V | ||
Abracon高精度晶振,ABM11AIG超小型晶振,ABM11AIG-19.200MHZ-J4Z-T3車載香薰系統晶振
| 編碼 | 品牌 | 型號 | 頻率 | 頻率穩定度 | 頻率容差 | 負載 |
| ABM11AIG-19.200MHZ-4-T3 | Abracon | ABM11AIG | 19.2 MHz | ±100ppm | ±30ppm | 10 pF |
| ABM11AIG-19.200MHZ-4Z-T3 | Abracon | ABM11AIG | 19.2 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM11AIG-19.200MHZ-J4Z-T3 | Abracon | ABM11AIG | 19.2 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM11AIG-20.000MHZ-4-T3 | Abracon | ABM11AIG | 20 MHz | ±100ppm | ±30ppm | 10 pF |
| ABM11AIG-20.000MHZ-4Z-T3 | Abracon | ABM11AIG | 20 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM11AIG-20.000MHZ-J4Z-T3 | Abracon | ABM11AIG | 20 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM11AIG-24.000MHZ-2Z-T | Abracon | ABM11AIG | 24 MHz | ±50ppm | ±20ppm | 10 pF |
| ABM11AIG-24.000MHZ-4-T3 | Abracon | ABM11AIG | 24 MHz | ±100ppm | ±30ppm | 10 pF |
| ABM11AIG-24.000MHZ-4Z-T3 | Abracon | ABM11AIG | 24 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM11AIG-24.000MHZ-J4Z-T3 | Abracon | ABM11AIG | 24 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM11AIG-24.576MHZ-4-T3 | Abracon | ABM11AIG | 24.576 MHz | ±100ppm | ±30ppm | 10 pF |
| ABM11AIG-24.576MHZ-4Z-T3 | Abracon | ABM11AIG | 24.576 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM11AIG-24.576MHZ-J4Z-T3 | Abracon | ABM11AIG | 24.576 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM11AIG-25.000MHZ-4-T3 | Abracon | ABM11AIG | 25 MHz | ±100ppm | ±30ppm | 10 pF |
| ABM11AIG-25.000MHZ-4Z-T3 | Abracon | ABM11AIG | 25 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM11AIG-25.000MHZ-6-2-T | Abracon | ABM11AIG | 25 MHz | ±100ppm | ±20ppm | 6 pF |
| ABM11AIG-25.000MHZ-J4Z-T3 | Abracon | ABM11AIG | 25 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM11AIG-26.000MHZ-1-T | Abracon | ABM11AIG | 26 MHz | ±100ppm | ±10ppm | 10 pF |
| ABM11AIG-26.000MHZ-4-T3 | Abracon | ABM11AIG | 26 MHz | ±100ppm | ±30ppm | 10 pF |
| ABM11AIG-26.000MHZ-4Z-T3 | Abracon | ABM11AIG | 26 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM11AIG-26.000MHZ-J4Z-T3 | Abracon | ABM11AIG | 26 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM11AIG-27.000MHZ-1-T | Abracon | ABM11AIG | 27 MHz | ±100ppm | ±10ppm | 10 pF |
| ABM11AIG-27.000MHZ-4-T3 | Abracon | ABM11AIG | 27 MHz | ±100ppm | ±30ppm | 10 pF |
| ABM11AIG-27.000MHZ-4Z-T3 | Abracon | ABM11AIG | 27 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM11AIG-27.000MHZ-J4Z-T3 | Abracon | ABM11AIG | 27 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM11AIG-27.120MHZ-4-T3 | Abracon | ABM11AIG | 27.12 MHz | ±100ppm | ±30ppm | 10 pF |
| ABM11AIG-27.120MHZ-4Z-T3 | Abracon | ABM11AIG | 27.12 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM11AIG-27.120MHZ-J4Z-T3 | Abracon | ABM11AIG | 27.12 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM11AIG-30.000MHZ-4-T3 | Abracon | ABM11AIG | 30 MHz | ±100ppm | ±30ppm | 10 pF |
| ABM11AIG-30.000MHZ-4Z-T3 | Abracon | ABM11AIG | 30 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM11AIG-30.000MHZ-J4Z-T3 | Abracon | ABM11AIG | 30 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM11AIG-32.000MHZ-4-T3 | Abracon | ABM11AIG | 32 MHz | ±100ppm | ±30ppm | 10 pF |
| ABM11AIG-32.000MHZ-4Z-T | Abracon | ABM11AIG | 32 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM11AIG-32.000MHZ-4Z-T3 | Abracon | ABM11AIG | 32 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM11AIG-32.000MHZ-J4Z-T3 | Abracon | ABM11AIG | 32 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM11AIG-40.000MHZ-4-T3 | Abracon | ABM11AIG | 40 MHz | ±100ppm | ±30ppm | 10 pF |
| ABM11AIG-40.000MHZ-4Z-T3 | Abracon | ABM11AIG | 40 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM11AIG-40.000MHZ-J4Z-T3 | Abracon | ABM11AIG | 40 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM11AIG-48.000MHZ-1-T | Abracon | ABM11AIG | 48 MHz | ±100ppm | ±10ppm | 10 pF |
| ABM11AIG-48.000MHZ-4-T3 | Abracon | ABM11AIG | 48 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM11AIG-48.000MHZ-4Z-T3 | Abracon | ABM11AIG | 48 MHz | ±50ppm | ±30ppm | 10 pF |
| ABM11AIG-48.000MHZ-J4Z-T3 | Abracon | ABM11AIG | 48 MHz | ±50ppm | ±30ppm | 10 pF |
