- 規格型號：33113962
- 頻率：114.285MHz
- 尺寸：3225mm
- 產品描述：ABRACON小體積3225晶振,ABM8高精度晶振,ABM8-114.285MHZ-D2X-T工業設備晶振，美國Abracon晶振公司，艾博康晶振，ABM8晶振，ABM8-114.285MHZ-D2X-T晶振，3225晶振，貼片晶振，進口晶振，無源晶振，美國晶振，高品質晶振...

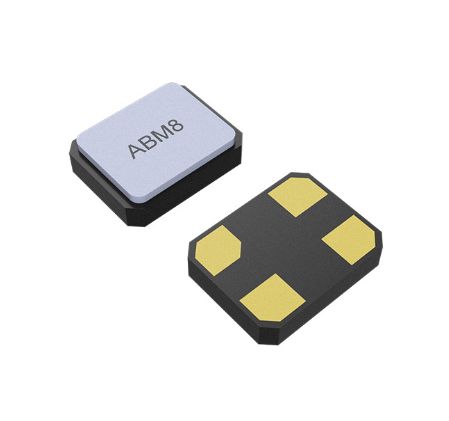

ABRACON小體積3225晶振,ABM8高精度晶振,ABM8-114.285MHZ-D2X-T工業設備晶振
.jpg)
ABRACON小體積3225晶振,ABM8高精度晶振,ABM8-114.285MHZ-D2X-T工業設備晶振，美國Abracon晶振公司，艾博康晶振，ABM8晶振，ABM8-114.285MHZ-D2X-T晶振，3225晶振，貼片晶振，進口晶振，無源晶振，美國晶振，高品質晶振，低損耗晶振，高精度晶振，3225晶振，四腳晶振，石英晶體，貼片晶振。密封封裝，可靠性高。嚴格的公差和穩定性。適用于RoHS回流。高密度應用，調制解調器，通信和測試設備，PMCIA，無線應用
| 參數 | Minimum | Typical | Maximum | Units | Notes |
| 頻率 | 8.000 | 125.000* | MHz |
Contact Abracon for available F<10MHz |
|
| 工作模式 | Fundamental | 8MHz - 54MHz | |||
| 3rd Overtone | 64MHz - 125MHz Please contact Abracon foravailable frequencies | ||||
| 工作溫度 | -10 | +60 | ºC | Standard(see options if other than STD) | |
| 儲存溫度 | -55 | +125 | ºC | ||
| 頻率容差 | -50 | +50 | ppm | Standard(see options if other than STD) | |
| 工作溫度范圍內的頻率穩定度 | -50 | +50 | ppm | Standard(see options if other than STD) | |
| 等效串聯電阻 | See table 1 below | ||||
| 分流電容 | 3.0 | pF | |||
| 負載電容 | 18.0 | pF | Standard (See options ifother than STD) | ||
| 驅動電平 | 10 | 100 | µW | ||
| 老化 | -2 | +2 | ppm | @25°C±3°CFirst year | |
| 絕緣電阻 | 500 | M | @ 100Vdc ± 15V | ||

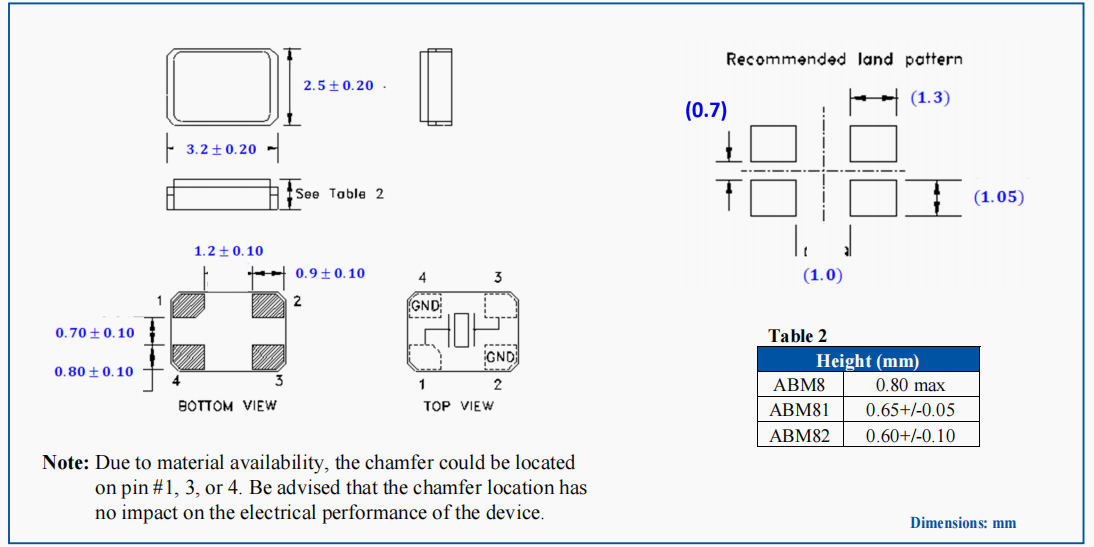

ABRACON小體積3225晶振,ABM8高精度晶振,ABM8-114.285MHZ-D2X-T工業設備晶振
.png)
| 編碼 | 品牌 | 型號 | 頻率 | 頻率穩定度 | 頻率容差 | 負載 |
| ABM8-114.285MHZ-D2X-T | Abracon | ABM8 | 114.285 MHz | ±20ppm | ±20ppm | 18 pF |
| ABM8-12.000MHZ-12-B1U-T | Abracon | ABM8 | 12 MHz | ±10ppm | ±10ppm | 12 pF |
| ABM8-12.000MHZ-20-B1U-T | Abracon | ABM8 | 12 MHz | ±10ppm | ±10ppm | 20 pF |
| ABM8-12.000MHZ-B2-T | Abracon | ABM8 | 12 MHz | ±50ppm | ±20ppm | 18 pF |
| ABM8-12.000MHZ-B2-T3 | Abracon | ABM8 | 12 MHz | ±50ppm | ±20ppm | 18 pF |
| ABM8-12.000MHZ-R100-D7G-T | Abracon | ABM8 | 12 MHz | ±15ppm | ±15ppm | 18 pF |
| ABM8-12.288MHZ-B2-T | Abracon | ABM8 | 12.288 MHz | ±50ppm | ±20ppm | 18 pF |
| ABM8-12.288MHZ-B2-T3 | Abracon | ABM8 | 12.288 MHz | ±50ppm | ±20ppm | 18 pF |
| ABM8-13.000MHZ-10-1-U-T | Abracon | ABM8 | 13 MHz | ±10ppm | ±10ppm | 10 pF |
| ABM8-13.000MHZ-B2-T | Abracon | ABM8 | 13 MHz | ±50ppm | ±20ppm | 18 pF |
| ABM8-13.000MHZ-B2-T3 | Abracon | ABM8 | 13 MHz | ±50ppm | ±20ppm | 18 pF |
| ABM8-13.560MHZ-12-D1X-T | Abracon | ABM8 | 13.56 MHz | ±20ppm | ±10ppm | 12 pF |
| ABM8-13.560MHZ-D1X-T | Abracon | ABM8 | 13.56 MHz | ±20ppm | ±10ppm | 18 pF |
| ABM8-13.560MHZ-D4Y-T | Abracon | ABM8 | 13.56 MHz | ±30ppm | ±30ppm | 18 pF |
| ABM8-14.31818MHZ-B2-T | Abracon | ABM8 | 14.31818 MHz | ±50ppm | ±20ppm | 18 pF |
| ABM8-14.31818MHZ-B2-T3 | Abracon | ABM8 | 14.31818 MHz | ±50ppm | ±20ppm | 18 pF |
| ABM8-14.7456MHZ-10-1-U-T | Abracon | ABM8 | 14.7456 MHz | ±10ppm | ±10ppm | 10 pF |
| ABM8-14.7456MHZ-10-B1U-T | Abracon | ABM8 | 14.7456 MHz | ±10ppm | ±10ppm | 10 pF |
| ABM8-14.7456MHZ-12-D1X-T | Abracon | ABM8 | 14.7456 MHz | ±20ppm | ±10ppm | 12 pF |
| ABM8-14.7456MHZ-D1X-T | Abracon | ABM8 | 14.7456 MHz | ±20ppm | ±10ppm | 18 pF |
| ABM8-16.000MHZ-10-1-U-T | Abracon | ABM8 | 16 MHz | ±10ppm | ±10ppm | 10 pF |
| ABM8-16.000MHZ-10-D7G-T | Abracon | ABM8 | 16 MHz | ±15ppm | ±15ppm | 10 pF |
| ABM8-16.000MHZ-12-K1Z-T | Abracon | ABM8 | 16 MHz | ±50ppm | ±10ppm | 12 pF |
| ABM8-16.000MHZ-6-R70-C-1-X-T | Abracon | ABM8 | 16 MHz | ±20ppm | ±10ppm | 6 pF |
| ABM8-16.000MHZ-7-1-U-T | Abracon | ABM8 | 16 MHz | ±10ppm | ±10ppm | 7 pF |
| ABM8-16.000MHZ-8-D7W-T | Abracon | ABM8 | 16 MHz | ±25ppm | ±15ppm | 8 pF |
| ABM8-16.000MHZ-9-B1U-T | Abracon | ABM8 | 16 MHz | ±10ppm | ±10ppm | 9 pF |
| ABM8-16.000MHZ-9-D1G-T | Abracon | ABM8 | 16 MHz | ±15ppm | ±10ppm | 9 pF |
| ABM8-16.000MHZ-B2-T | Abracon | ABM8 | 16 MHz | ±50ppm | ±20ppm | 18 pF |
| ABM8-16.000MHZ-B2-T3 | Abracon | ABM8 | 16 MHz | ±50ppm | ±20ppm | 18 pF |
| ABM8-16.000MHZ-D1X-T | Abracon | ABM8 | 16 MHz | ±20ppm | ±10ppm | 18 pF |
| ABM8-16.000MHZ-D2-T | Abracon | ABM8 | 16 MHz | ±50ppm | ±20ppm | 18 pF |
| ABM8-16.000MHZ-D4Y-T | Abracon | ABM8 | 16 MHz | ±30ppm | ±30ppm | 18 pF |
| ABM8-16.3676MHZ-10-1-U-T | Abracon | ABM8 | 16.3676 MHz | ±10ppm | ±10ppm | 10 pF |
| ABM8-16.384MHZ-10-1-U-T | Abracon | ABM8 | 16.384 MHz | ±10ppm | ±10ppm | 10 pF |
| ABM8-16.384MHZ-10-B1U-T | Abracon | ABM8 | 16.384 MHz | ±10ppm | ±10ppm | 10 pF |
| ABM8-16.384MHZ-B2-T | Abracon | ABM8 | 16.384 MHz | ±50ppm | ±20ppm | 18 pF |
| ABM8-16.384MHZ-B2-T3 | Abracon | ABM8 | 16.384 MHz | ±50ppm | ±20ppm | 18 pF |
| ABM8-16.384MHZ-D2Y-T | Abracon | ABM8 | 16.384 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM8-16.800MHZ-10-1-U-T | Abracon | ABM8 | 16.8 MHz | ±10ppm | ±10ppm | 10 pF |
| ABM8-166-114.285MHZ-T2 | Abracon | ABM8 | 114.285 MHz | ±20ppm | ±20ppm | 18 pF |
| ABM8-18.080MHZ-10-R60-E-1-U-T | Abracon | ABM8 | 18.08 MHz | ±10ppm | ±10ppm | 10 pF |
| ABM8-18.089583MHZ-10-R60-E1U-T | Abracon | ABM8 | 18.089583 MHz | ±10ppm | ±10ppm | 10 pF |
| ABM8-18.432MHZ-10-B1U-T | Abracon | ABM8 | 18.432 MHz | ±10ppm | ±10ppm | 10 pF |
| ABM8-18.432MHZ-12-D4Y-T | Abracon | ABM8 | 18.432 MHz | ±30ppm | ±30ppm | 12 pF |
| ABM8-18.432MHZ-20-B1U-T | Abracon | ABM8 | 18.432 MHz | ±10ppm | ±10ppm | 20 pF |
| ABM8-18.432MHZ-20-D1X-T | Abracon | ABM8 | 18.432 MHz | ±20ppm | ±10ppm | 20 pF |
| ABM8-18.432MHZ-4-T | Abracon | ABM8 | 18.432 MHz | ±50ppm | ±50ppm | 4 pF |
| ABM8-18.432MHZ-B2-T | Abracon | ABM8 | 18.432 MHz | ±50ppm | ±20ppm | 18 pF |
| ABM8-18.432MHZ-B2-T3 | Abracon | ABM8 | 18.432 MHz | ±50ppm | ±20ppm | 18 pF |
| ABM8-18.432MHZ-D1X-T | Abracon | ABM8 | 18.432 MHz | ±20ppm | ±10ppm | 18 pF |
| ABM8-19.0625MHZ-10-R60-E-1-U-T | Abracon | ABM8 | 19.0625 MHz | ±10ppm | ±10ppm | 10 pF |
| ABM8-19.200MHZ-10-1-U-T | Abracon | ABM8 | 19.2 MHz | ±10ppm | ±10ppm | 10 pF |
| ABM8-19.200MHZ-B2-T | Abracon | ABM8 | 19.2 MHz | ±50ppm | ±20ppm | 18 pF |
| ABM8-19.200MHZ-B2-T3 | Abracon | ABM8 | 19.2 MHz | ±50ppm | ±20ppm | 18 pF |
| ABM8-19.200MHZ-D4-T | Abracon | ABM8 | 19.2 MHz | ±50ppm | ±30ppm | 18 pF |
| ABM8-19.6875MHZ-10-R60-E-1-U-T | Abracon | ABM8 | 19.6875 MHz | ±10ppm | ±10ppm | 10 pF |
| ABM8-20.000MHZ-10-1-U-T | Abracon | ABM8 | 20 MHz | ±10ppm | ±10ppm | 10 pF |
| ABM8-20.000MHZ-10-B1U-T | Abracon | ABM8 | 20 MHz | ±10ppm | ±10ppm | 10 pF |
| ABM8-20.000MHZ-12-D1X-T | Abracon | ABM8 | 20 MHz | ±20ppm | ±10ppm | 12 pF |
| ABM8-20.000MHZ-12-K1Z-T | Abracon | ABM8 | 20 MHz | ±50ppm | ±10ppm | 12 pF |
| ABM8-20.000MHZ-18-D2Y-T | Abracon | ABM8 | 20 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM8-20.000MHZ-B2-T | Abracon | ABM8 | 20 MHz | ±50ppm | ±20ppm | 18 pF |
| ABM8-20.000MHZ-B2-T3 | Abracon | ABM8 | 20 MHz | ±50ppm | ±20ppm | 18 pF |
| ABM8-20.000MHZ-D1G-T | Abracon | ABM8 | 20 MHz | ±15ppm | ±10ppm | 18 pF |
| ABM8-22.1184MHZ-B2-T | Abracon | ABM8 | 22.1184 MHz | ±50ppm | ±20ppm | 18 pF |
| ABM8-22.1184MHZ-B2-T3 | Abracon | ABM8 | 22.1184 MHz | ±50ppm | ±20ppm | 18 pF |
| ABM8-22.5792MHZ-D2Y-T | Abracon | ABM8 | 22.5792 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM8-22.579MHZ-B2-T | Abracon | ABM8 | 22.579 MHz | ±50ppm | ±20ppm | 18 pF |
| ABM8-24.000MHZ-10-B1U-T | Abracon | ABM8 | 24 MHz | ±10ppm | ±10ppm | 10 pF |
| ABM8-24.000MHZ-12-B1U-T | Abracon | ABM8 | 24 MHz | ±10ppm | ±10ppm | 12 pF |
| ABM8-24.000MHZ-B1G-T | Abracon | ABM8 | 24 MHz | ±15ppm | ±10ppm | 18 pF |
| ABM8-24.000MHZ-B2-T | Abracon | ABM8 | 24 MHz | ±50ppm | ±20ppm | 18 pF |
| ABM8-24.000MHZ-B2-T3 | Abracon | ABM8 | 24 MHz | ±50ppm | ±20ppm | 18 pF |
| ABM8-24.000MHZ-D1G-T | Abracon | ABM8 | 24 MHz | ±15ppm | ±10ppm | 18 pF |
| ABM8-24.000MHZ-D2-T | Abracon | ABM8 | 24 MHz | ±50ppm | ±20ppm | 18 pF |
| ABM8-24.000MHZ-D2Y-T | Abracon | ABM8 | 24 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM8-24.000MHZ-D4Y-T | Abracon | ABM8 | 24 MHz | ±30ppm | ±30ppm | 18 pF |
| ABM8-24.000MHZ-R60-D-1-G-T | Abracon | ABM8 | 24 MHz | ±15ppm | ±10ppm | 18 pF |
| ABM8-24.000MHZ-R60-D-1-W-T | Abracon | ABM8 | 24 MHz | ±25ppm | ±10ppm | 18 pF |
| ABM8-24.000MHZ-R60-D-1-W-T3 | Abracon | ABM8 | 24 MHz | ±25ppm | ±10ppm | 18 pF |
| ABM8-24.000MHZ-R60-D2Y-T | Abracon | ABM8 | 24 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM8-24.5535MHZ-10-1-U-T | Abracon | ABM8 | 24.5535 MHz | ±10ppm | ±10ppm | 10 pF |
| ABM8-24.576MHZ-10-1-U-T | Abracon | ABM8 | 24.576 MHz | ±10ppm | ±10ppm | 10 pF |
| ABM8-24.576MHZ-12-D1G-T | Abracon | ABM8 | 24.576 MHz | ±15ppm | ±10ppm | 12 pF |
| ABM8-24.576MHZ-B2-T | Abracon | ABM8 | 24.576 MHz | ±50ppm | ±20ppm | 18 pF |
| ABM8-24.576MHZ-B2-T3 | Abracon | ABM8 | 24.576 MHz | ±50ppm | ±20ppm | 18 pF |
| ABM8-25.000MHZ-10-B1U-T | Abracon | ABM8 | 25 MHz | ±10ppm | ±10ppm | 10 pF |
| ABM8-25.000MHZ-10-D1G-T | Abracon | ABM8 | 25 MHz | ±15ppm | ±10ppm | 10 pF |
