- 規格型號：50063633
- 頻率：8.0MHz
- 尺寸：5032mm
- 產品描述：LFXTAL053050Cutt,IQD晶振,5032貼片晶振,IQD為該晶振設計了特殊的陶瓷外殼與內部屏蔽結構,有效降低電磁輻射(EMI),同時提升抗外部電磁干擾能力,在多模塊密集布局的PCB板中,可減少對周邊敏感元器件的信號干擾
LFXTAL053050Cutt,IQD晶振,5032貼片晶振
.png)
.png)

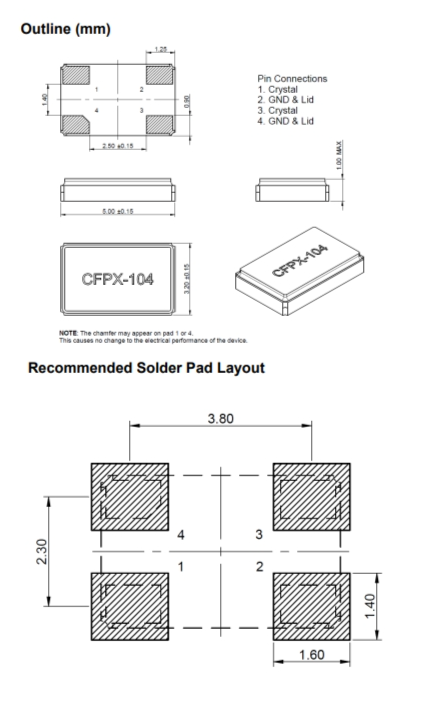

LFXTAL053050Cutt,IQD晶振,5032貼片晶振
LFXTAL053050Cutt是IQD品牌推出的一款高性價比5032封裝貼片晶振,核心頻率精準設定為50MHz,屬于高頻時序器件,能為各類智能電子應用晶振設備的高速信號處理與數據傳輸提供穩定時鐘基準.其采用行業標準的5032貼片封裝(尺寸5.0mm×3.2mm),不僅適配自動化SMT貼片工藝,大幅提升生產效率,還能在PCB板上高效利用空間,尤其適合對尺寸有一定要求但無需極致微型化的設備設計.在電壓適配性上,該晶振支持2.5V-3.3V寬工作電壓,典型工作電流僅為10mA,在滿足高頻性能需求的同時,有效控制功耗,可廣泛應用于6G路由器晶振,機頂盒,工業控制模塊等需要穩定高頻時鐘的設備.
.png)
LFXTAL053050Cutt,IQD晶振,5032貼片晶振
| 原廠型號 Originalmodel： | LFXTAL053050Cutt | 品牌brand： | IQD晶振 |
| 品牌brand： | IQD晶振 | ESR（等效串聯電阻）Resistance) | - |
| 型號名稱 Modelname： | CFPX-180 | 溫度OperatingTemperature | -20°C to 70°C |
| Type系列： | MHz Crystal | 腳位Termination： | 4pad |
| 頻率 frequency： | 8.0MHz | 封裝類型PackageType： | 4-SMD |
| FrequencyStability頻率穩定度 | ±30ppm | 高度PackageHeight： | 1.00mm |
| frequencytolerance頻率容差 | ±30ppm | 最小包裝數MPQ： | 1000 |
| Loadcapacitance 負載電容 | 12.00pF | 包裝Packaging： | TapeandReel |
| Size/Dimension尺寸 | 5032貼片晶振 | 安裝方式MountingStyle： | SurfaceMount |
.png)
LFXTAL053050Cutt,IQD晶振,5032貼片晶振
LFXTAL053050Cutt,IQD晶振,5032貼片晶振
| LFXTAL081314Reel | IQXC-240 | 37.4MHz | ±7ppm | ±15ppm | -30°C to 85°C | 5.00pF |
| LFXTAL081316Reel | IQXC-240 | 38.4MHz | ±7ppm | ±15ppm | -30°C to 85°C | 5.00pF |
| LFXTAL072539Reel | IQXC-26 | 24.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL078691Cutt | IQXC-26 | 24.0MHz | ±10ppm | ±30ppm | -40°C to 85°C | 20.00pF |
| LFXTAL081608Cutt | IQXC-26 | 24.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL081608Reel | IQXC-26 | 24.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL081609Cutt | IQXC-26 | 25.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL083890Cutt | IQXC-26 | 25.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 20.00pF |
| LFXTAL052799Cutt | IQXC-26 | 26.0MHz | ±10ppm | ±30ppm | -40°C to 85°C | 10.00pF |
| LFXTAL066742Cutt | IQXC-26 | 26.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL066742Reel | IQXC-26 | 26.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL069296Cutt | IQXC-26 | 26.0MHz | ±15ppm | ±20ppm | -20°C to 70°C | 8.00pF |
| LFXTAL070729Cutt | IQXC-26 | 26.0MHz | ±10ppm | ±15ppm | -20°C to 70°C | 12.00pF |
| LFXTAL081614Cutt | IQXC-26 | 26.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL081614Reel | IQXC-26 | 26.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL072541Cutt | IQXC-26 | 27.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL072541Reel | IQXC-26 | 27.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL081610Cutt | IQXC-26 | 27.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL072302Cutt | IQXC-26 | 30.0MHz | ±15ppm | ±15ppm | 20°C to 70°C | 8.00pF |
| LFXTAL081612Cutt | IQXC-26 | 30.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL056523Cutt | IQXC-26 | 32.0MHz | ±20ppm | ±20ppm | -20°C to 70°C | 8.00pF |
| LFXTAL056523Reel | IQXC-26 | 32.0MHz | ±20ppm | ±20ppm | -20°C to 70°C | 8.00pF |
| LFXTAL069526Cutt | IQXC-26 | 32.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL069526Reel | IQXC-26 | 32.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL079322Cutt | IQXC-26 | 32.0MHz | ±10ppm | ±20ppm | -20°C to 70°C | 12.00pF |
| LFXTAL079322Reel | IQXC-26 | 32.0MHz | ±10ppm | ±20ppm | -20°C to 70°C | 12.00pF |
| LFXTAL081613Cutt | IQXC-26 | 32.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL083149Reel | IQXC-26 | 32.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 6.00pF |
| LFXTAL072304Cutt | IQXC-26 | 37.4MHz | ±15ppm | ±15ppm | 20°C to 70°C | 8.00pF |
| LFXTAL081616Cutt | IQXC-26 | 37.4MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL063312Cutt | IQXC-26 | 40.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 16.00pF |
| LFXTAL069527Cutt | IQXC-26 | 40.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL069527Reel | IQXC-26 | 40.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL081619Cutt | IQXC-26 | 40.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL069528Cutt | IQXC-26 | 48.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL069528Reel | IQXC-26 | 48.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL081620Cutt | IQXC-26 | 48.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL078795Cutt | IQXC-42 | 16.0MHz | ±15ppm | ±50ppm | -40°C to 85°C | 8.00pF |
| LFXTAL081780RL3K | IQXC-42 | 16.0MHz | ±10ppm | ±20ppm | -30°C to 85°C | 8.00pF |
| LFXTAL081781RL3K | IQXC-42 | 16.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL081821Cutt | IQXC-42 | 16.0MHz | ±10ppm | ±15ppm | -30°C to 85°C | 12.00pF |
| LFXTAL082887RL3K | IQXC-42 | 16.0MHz | ±10ppm | ±30ppm | -40°C to 105°C | 10.00pF |
| LFXTAL059585Cutt | IQXC-42 | 20.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL059585Reel | IQXC-42 | 20.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL059585RL3K | IQXC-42 | 20.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL064174RL3K | IQXC-42 | 24.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 12.00pF |
| LFXTAL066139Cutt | IQXC-42 | 24.0MHz | ±20ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL069476RL3K | IQXC-42 | 24.0MHz | ±10ppm | ±10ppm | -20°C to 75°C | 12.00pF |
| LFXTAL069493Cutt | IQXC-42 | 24.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL069493Reel | IQXC-42 | 24.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL069493RL3K | IQXC-42 | 24.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL072577RL3K | IQXC-42 | 24.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 18.00pF |
| LFXTAL076411Cutt | IQXC-42 | 24.0MHz | ±10ppm | ±10ppm | -20°C to 70°C | 10.00pF |
| LFXTAL076411RL3K | IQXC-42 | 24.0MHz | ±10ppm | ±10ppm | -20°C to 70°C | 10.00pF |
| LFXTAL081531RL3K | IQXC-42 | 24.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL081646RL3K | IQXC-42 | 24.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL082123Cutt | IQXC-42 | 24.0MHz | ±10ppm | ±15ppm | -40°C to 85°C | 8.00pF |
| LFXTAL082123RL3K | IQXC-42 | 24.0MHz | ±10ppm | ±15ppm | -40°C to 85°C | 8.00pF |
| LFXTAL090516RL3K | IQXC-42 | 24.0MHz | ±50ppm | ±50ppm | -40°C to 85°C | 12.00pF |
| LFXTAL054026Cutt | IQXC-42 | 25.0MHz | ±25ppm | ±30ppm | -40°C to 85°C | 18.00pF |
