- 規格型號：91383059
- 頻率：12.0MHz
- 尺寸：2520mm
- 產品描述：LFXTAL071952RL3K,CFPX-218諧振器,美國IQD進口晶振,采用高品質晶體材料與精密封裝工藝,使用壽命長達100000小時以上,可適配需要長期連續運行的設備,如工業自動化生產線監控設備,智能電網遠程監測終端,大幅降低設備后期...

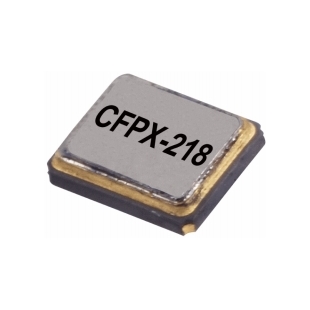

LFXTAL071952RL3K,CFPX-218諧振器,美國IQD進口晶振
.png)
.png)
LFXTAL071952RL3K,CFPX-218諧振器,美國IQD進口晶振
LFXTAL071952RL3K采用RL3K卷盤封裝,完美兼容SMT表面貼裝生產線的自動化高速貼片流程,能大幅減少人工操作,特別適合消費電子,物聯網設備等批量生產場景,如智能插座控制模塊,小型無線傳感器終端,在提供穩定時鐘信號的同時,保障量產產品的頻率一致性,顯著提升生產效率.可在-40℃~85℃的寬溫區間內穩定工作,即便應用于戶外環境監測設備,工業晶振高溫作業區的小型控制終端等復雜場景,也能始終保持精準的頻率輸出,為設備長期穩定運行筑牢時基根基,減少因環境變化導致的設備故障.
.png)
LFXTAL071952RL3K,CFPX-218諧振器,美國IQD進口晶振
| 原廠型號 Originalmodel： | LFXTAL071952RL3K | 品牌brand： | IQD晶振 |
| 品牌brand： | IQD石英晶體諧振器 | ESR（等效串聯電阻）Resistance) | - |
| 型號名稱 Modelname： | CFPX-218 | 溫度OperatingTemperature | -40°C to 85°C |
| Type系列： | MHz Crystal | 腳位Termination： | 4pad |
| 頻率 frequency： | 12.0MHz | 封裝類型PackageType： | 4-SMD |
| FrequencyStability頻率穩定度 | ±30ppm | 高度PackageHeight： | 0.60mm |
| frequencytolerance頻率容差 | ±20ppm | 最小包裝數MPQ： | 3000 |
| Loadcapacitance 負載電容 | 10.00pF | 包裝Packaging： | TapeandReel |

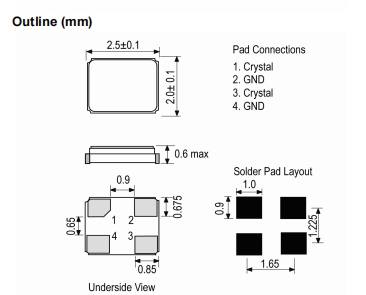

| Size/Dimension尺寸 | 2520mm | 安裝方式MountingStyle： | SurfaceMount |
.png)
LFXTAL071952RL3K,CFPX-218諧振器,美國IQD進口晶振
LFXTAL071952RL3K,CFPX-218諧振器,美國IQD進口晶振
| LFXTAL081314Reel | IQXC-240 | 37.4MHz | ±7ppm | ±15ppm | -30°C to 85°C | 5.00pF |
| LFXTAL081316Reel | IQXC-240 | 38.4MHz | ±7ppm | ±15ppm | -30°C to 85°C | 5.00pF |
| LFXTAL072539Reel | IQXC-26 | 24.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL078691Cutt | IQXC-26 | 24.0MHz | ±10ppm | ±30ppm | -40°C to 85°C | 20.00pF |
| LFXTAL081608Cutt | IQXC-26 | 24.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL081608Reel | IQXC-26 | 24.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL081609Cutt | IQXC-26 | 25.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL083890Cutt | IQXC-26 | 25.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 20.00pF |
| LFXTAL052799Cutt | IQXC-26 | 26.0MHz | ±10ppm | ±30ppm | -40°C to 85°C | 10.00pF |
| LFXTAL066742Cutt | IQXC-26 | 26.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL066742Reel | IQXC-26 | 26.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL069296Cutt | IQXC-26 | 26.0MHz | ±15ppm | ±20ppm | -20°C to 70°C | 8.00pF |
| LFXTAL070729Cutt | IQXC-26 | 26.0MHz | ±10ppm | ±15ppm | -20°C to 70°C | 12.00pF |
| LFXTAL081614Cutt | IQXC-26 | 26.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL081614Reel | IQXC-26 | 26.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL072541Cutt | IQXC-26 | 27.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL072541Reel | IQXC-26 | 27.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL081610Cutt | IQXC-26 | 27.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL072302Cutt | IQXC-26 | 30.0MHz | ±15ppm | ±15ppm | 20°C to 70°C | 8.00pF |
| LFXTAL081612Cutt | IQXC-26 | 30.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL056523Cutt | IQXC-26 | 32.0MHz | ±20ppm | ±20ppm | -20°C to 70°C | 8.00pF |
| LFXTAL056523Reel | IQXC-26 | 32.0MHz | ±20ppm | ±20ppm | -20°C to 70°C | 8.00pF |
| LFXTAL069526Cutt | IQXC-26 | 32.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL069526Reel | IQXC-26 | 32.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL079322Cutt | IQXC-26 | 32.0MHz | ±10ppm | ±20ppm | -20°C to 70°C | 12.00pF |
| LFXTAL079322Reel | IQXC-26 | 32.0MHz | ±10ppm | ±20ppm | -20°C to 70°C | 12.00pF |
| LFXTAL081613Cutt | IQXC-26 | 32.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL083149Reel | IQXC-26 | 32.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 6.00pF |
| LFXTAL072304Cutt | IQXC-26 | 37.4MHz | ±15ppm | ±15ppm | 20°C to 70°C | 8.00pF |
| LFXTAL081616Cutt | IQXC-26 | 37.4MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL063312Cutt | IQXC-26 | 40.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 16.00pF |
| LFXTAL069527Cutt | IQXC-26 | 40.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL069527Reel | IQXC-26 | 40.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL081619Cutt | IQXC-26 | 40.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL069528Cutt | IQXC-26 | 48.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL069528Reel | IQXC-26 | 48.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL081620Cutt | IQXC-26 | 48.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL078795Cutt | IQXC-42 | 16.0MHz | ±15ppm | ±50ppm | -40°C to 85°C | 8.00pF |
| LFXTAL081780RL3K | IQXC-42 | 16.0MHz | ±10ppm | ±20ppm | -30°C to 85°C | 8.00pF |
| LFXTAL081781RL3K | IQXC-42 | 16.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL081821Cutt | IQXC-42 | 16.0MHz | ±10ppm | ±15ppm | -30°C to 85°C | 12.00pF |
| LFXTAL082887RL3K | IQXC-42 | 16.0MHz | ±10ppm | ±30ppm | -40°C to 105°C | 10.00pF |
| LFXTAL059585Cutt | IQXC-42 | 20.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL059585Reel | IQXC-42 | 20.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL059585RL3K | IQXC-42 | 20.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL064174RL3K | IQXC-42 | 24.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 12.00pF |
| LFXTAL066139Cutt | IQXC-42 | 24.0MHz | ±20ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL069476RL3K | IQXC-42 | 24.0MHz | ±10ppm | ±10ppm | -20°C to 75°C | 12.00pF |
| LFXTAL069493Cutt | IQXC-42 | 24.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL069493Reel | IQXC-42 | 24.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL069493RL3K | IQXC-42 | 24.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL072577RL3K | IQXC-42 | 24.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 18.00pF |
| LFXTAL076411Cutt | IQXC-42 | 24.0MHz | ±10ppm | ±10ppm | -20°C to 70°C | 10.00pF |
| LFXTAL076411RL3K | IQXC-42 | 24.0MHz | ±10ppm | ±10ppm | -20°C to 70°C | 10.00pF |
| LFXTAL081531RL3K | IQXC-42 | 24.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL081646RL3K | IQXC-42 | 24.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL082123Cutt | IQXC-42 | 24.0MHz | ±10ppm | ±15ppm | -40°C to 85°C | 8.00pF |
| LFXTAL082123RL3K | IQXC-42 | 24.0MHz | ±10ppm | ±15ppm | -40°C to 85°C | 8.00pF |
| LFXTAL090516RL3K | IQXC-42 | 24.0MHz | ±50ppm | ±50ppm | -40°C to 85°C | 12.00pF |
| LFXTAL054026Cutt | IQXC-42 | 25.0MHz | ±25ppm | ±30ppm | -40°C to 85°C | 18.00pF |
