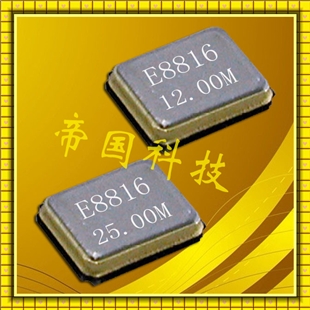

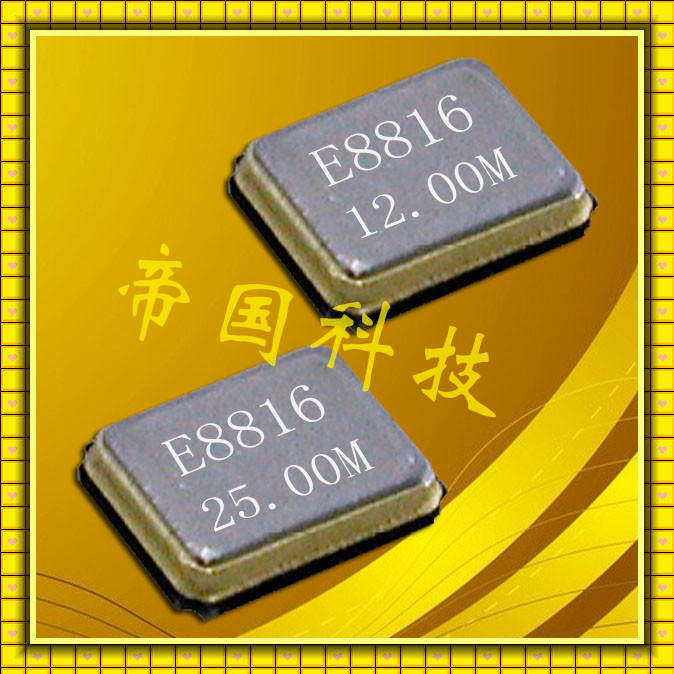

- 規格型號：92310650
- 頻率：27MHZ
- 尺寸：3.2*2.5mm
- 產品描述：TSX-3225/X1E0000210154/3225mm/27MHZ/無源晶體/10ppm/12pF，尺寸為3225mm，頻率為27MHZ，頻率容差10ppm，負載電容12pF,工作溫度-20to+75C，日本愛普生晶振，進口無源晶振，EPSON晶振，小體積晶振，輕薄型晶振，SMD晶...
TSX-3225/X1E0000210154/3225mm/27MHZ/無源晶體/10ppm/12pF
TSX-3225/X1E0000210154/3225mm/27MHZ/無源晶體/10ppm/12pF，尺寸為3225mm，頻率為27MHZ，頻率容差10ppm，負載電容12pF,工作溫度-20 to+75°C，日本愛普生晶振，進口無源晶振，EPSON晶振，小體積晶振，輕薄型晶振，SMD晶振，石英晶體諧振器，無源貼片晶振，石英晶體，水晶振動子，藍牙無源晶體，手機晶振，藍牙專用晶振，無線局域網晶振，主控板時鐘晶振，X1E0000210116貼片晶體，X1E0000210136石英諧振器.
SMD晶振產品主要應用范圍：手機，藍牙，無線局域網，ISM波段無線電，主控板時鐘等領域。TSX-3225/X1E0000210154/3225mm/27MHZ/無源晶體/10ppm/12pF.

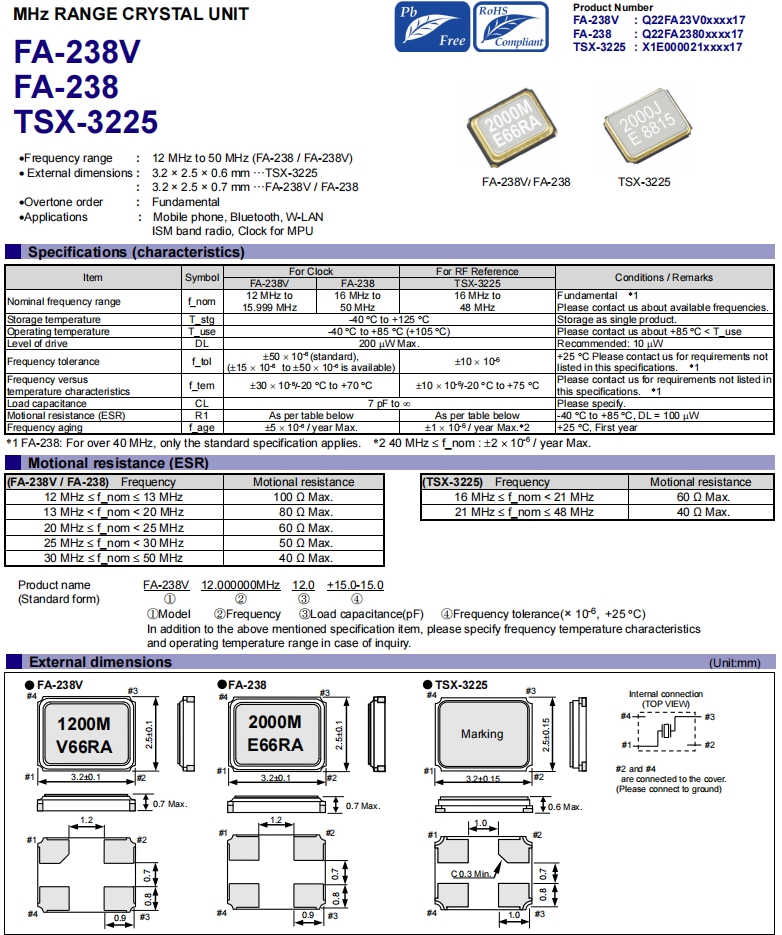

TSX-3225/X1E0000210154/3225mm/27MHZ/無源晶體/10ppm/12pF 參數表| 項目 | 符號 | For Clock | For RF Reference | 條件 | |||||||||||||||||||||||
| FA-238V | FA-238 | TSX-3225 | |||||||||||||||||||||||||
| 標稱頻率范圍 | f_nom |
12 MHz to 15.999 MHz |
16 MHz to 50 MHz |
16 MHz to 48 MHz |
基本* 1 請與我們聯系可用的頻率。 |
||||||||||||||||||||||
| 儲存溫度 | T_stg | -40 °C to +125 °C | 作為單一產品存儲。 | ||||||||||||||||||||||||
| 工作溫度 | T_use | -40 °C to +85 °C (+105 °C) | 請與我們聯系+85°C < T_use | ||||||||||||||||||||||||
| 驅動級別 | DL | 200 µW Max. | 建議:10µW | ||||||||||||||||||||||||
| 頻率公差 | f_tol |
±50 × 10-6 (standard), (±15 × 10-6 to ±50 × 10-6 is available) |
± 10 × 10-6 |
+25°C請與我們聯系 在本規范中列出。* 1 |
|||||||||||||||||||||||
| 頻率和溫度特性 | f_tem | ±30 × 10-6/-20 °C to +70 °C | ± 10 × 10-6/-20 °C to +75 °C |
請聯系我們的要求未列出 這個規范。* 1 |
|||||||||||||||||||||||
| 負載電容 | CL | 7 pF to ∞ | 請說明。 | ||||||||||||||||||||||||
| 運動阻力(ESR) | R1 | As per table below | As per table below | -40 °C to +85 °C, DL = 100 µW | |||||||||||||||||||||||
| 頻率老化 | f_age | ±5 × 10-6 / year Max. | ± 1 × 10-6 / year Max.*2 |
+25°C，第一年year |
|||||||||||||||||||||||

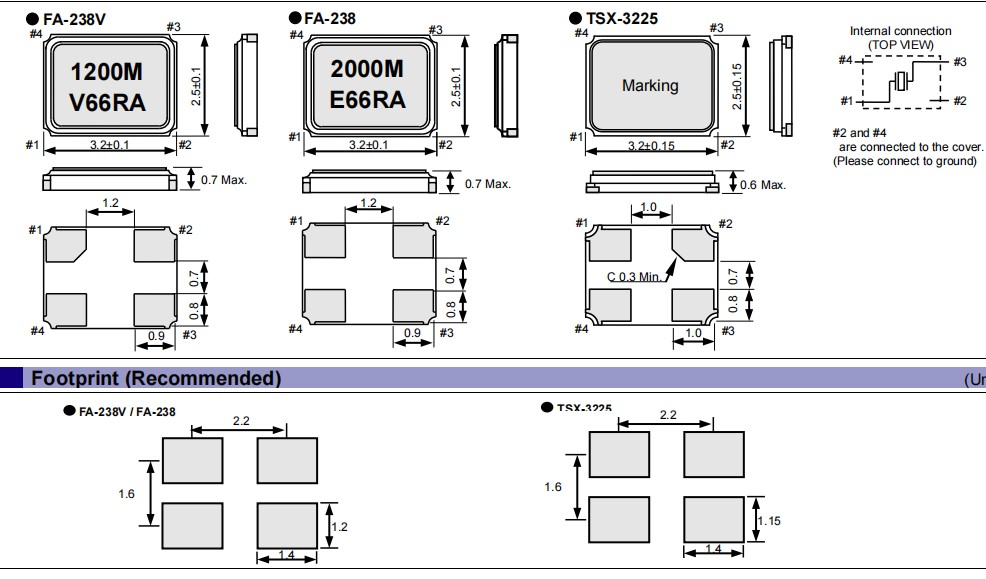

TSX-3225/X1E0000210154/3225mm/27MHZ/無源晶體/10ppm/12pF 尺寸圖.JPG)

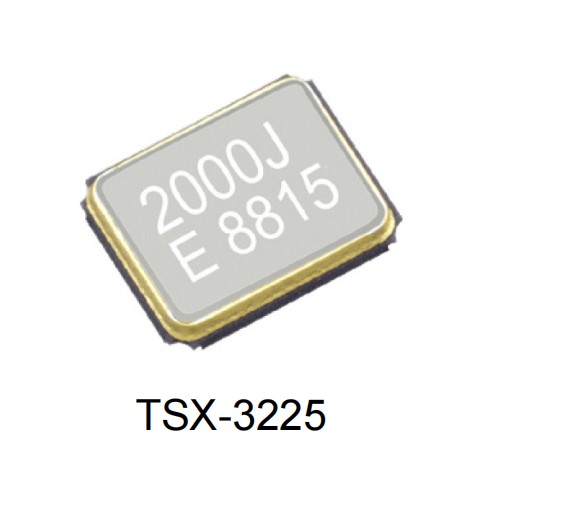

X1E0000210154晶振 特點：
•頻率范圍:12MHz至50MHz (FA-238/FA-238V)
•外部尺寸:3.2×2.5×0.6 mm···TSX-3225
···FA-238V/FA-238
•泛音順序:基本
| 編碼 | 尺寸 | 型號 | 頻率 | 負載 | 頻率 @+25°C | 工作溫度 |
| X1E0000210019 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 16.000000 MHz | 9 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210047 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 20.000000 MHz | 9 pF | +/-10 ppm | -40 to +105 °C |
| X1E0000210048 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 24.000000 MHz | 9 pF | +/-10 ppm | -40 to +105 °C |
| X1E0000210052 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 16.000000 MHz | 9 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210111 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 16.000000 MHz | 8 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210112 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 16.000000 MHz | 9 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210113 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 16.000000 MHz | 10 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210114 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 16.000000 MHz | 12 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210115 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 16.000000 MHz | 16 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210116 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 16.000000 MHz | 8 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210117 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 16.000000 MHz | 9 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210118 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 16.000000 MHz | 10 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210119 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 16.000000 MHz | 12 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210120 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 16.000000 MHz | 16 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210121 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 24.000000 MHz | 8 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210122 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 24.000000 MHz | 9 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210123 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 24.000000 MHz | 10 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210124 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 24.000000 MHz | 12 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210125 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 24.000000 MHz | 16 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210126 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 24.000000 MHz | 8 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210127 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 24.000000 MHz | 9 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210128 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 24.000000 MHz | 10 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210129 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 24.000000 MHz | 12 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210130 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 24.000000 MHz | 16 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210131 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 25.000000 MHz | 8 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210132 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 25.000000 MHz | 9 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210133 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 25.000000 MHz | 10 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210134 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 25.000000 MHz | 12 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210135 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 25.000000 MHz | 16 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210136 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 25.000000 MHz | 8 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210137 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 25.000000 MHz | 9 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210138 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 25.000000 MHz | 10 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210139 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 25.000000 MHz | 12 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210140 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 25.000000 MHz | 16 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210141 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 26.000000 MHz | 8 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210142 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 26.000000 MHz | 9 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210143 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 26.000000 MHz | 10 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210144 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 26.000000 MHz | 12 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210145 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 26.000000 MHz | 16 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210146 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 26.000000 MHz | 8 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210147 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 26.000000 MHz | 9 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210148 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 26.000000 MHz | 10 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210149 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 26.000000 MHz | 12 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210150 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 26.000000 MHz | 16 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210151 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 27.000000 MHz | 8 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210152 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 27.000000 MHz | 9 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210153 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 27.000000 MHz | 10 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210154 | 3.2 x 2.5 x 0.6mm | TSX-3225石英晶體 | 27.000000 MHz | 12 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210155 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 27.000000 MHz | 16 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210156 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 27.000000 MHz | 8 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210157 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 27.000000 MHz | 9 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210158 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 27.000000 MHz | 10 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210159 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 27.000000 MHz | 12 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210160 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 27.000000 MHz | 16 pF | +/-10 ppm | -40 to +85 °C |
| X1E0000210161 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 32.000000 MHz | 8 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210162 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 32.000000 MHz | 9 pF | +/-10 ppm | -20 to +75 °C |
| X1E0000210163 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 32.000000 MHz | 10 pF | +/-10 ppm | -20 to +75 °C |
