規格型號：44601770
頻率：13M
尺寸：3225mm
PDF
產品描述：AM13000302無源晶振,TXC耐高溫晶振,車載電子設備晶振,依托TXC先進的晶體加工與封裝技術,和頻率精度與穩定性上表現卓越即使在+125℃高溫極限工況下,頻率漂移仍能保持在極小范圍,確保車載設備如導航系統的定位精度,車載...

AM13000302無源晶振,TXC耐高溫晶振,車載電子設備晶振
AM13000302寬溫晶振,TXC無源晶振憑借無源設計與耐高溫性能,完美適配車載復雜環境:作為無源器件,無需額外供電,僅依靠車載電路驅動即可工作,能減少車載電源的能耗負擔,適配新能源汽車對低功耗的需求,同時,無源結構簡化了電路設計,降低車載設備的研發與生產復雜度.此外,晶振采用抗振動封裝結構,通過了ISO16750車載振動測試(10~2000Hz,加速度200m/s²),能耐受車輛行駛中的顛簸與機械沖擊,避免因振動導致的引腳接觸不良或晶體性能衰減,廣泛適用于車載多媒體主機,車載T-BOX(遠程信息處理終端),車載雷達等核心車載電子設備.

AM13000302無源晶振,TXC耐高溫晶振,車載電子設備晶振

原廠型號 Originalmodel：	AM13000302	品牌brand：	TXC

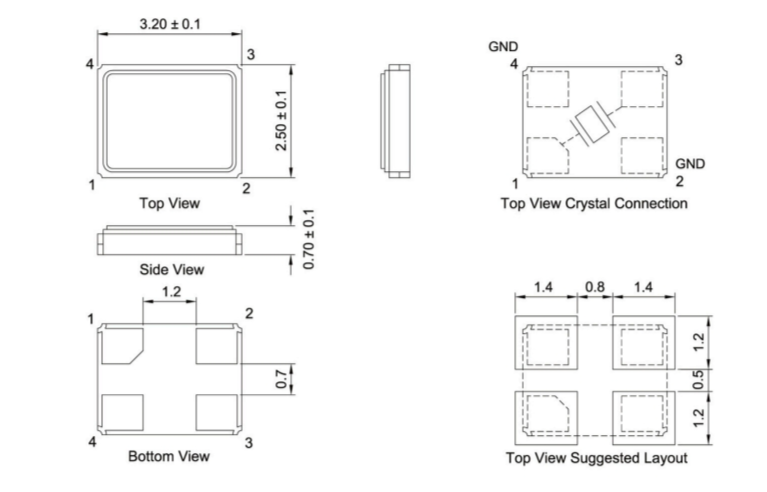

型號名稱 Modelname：	AM無線網絡應用	Size/Dimension尺寸	3225mm
Type系列：	MHz Crystal	高度PackageHeight：	0.7mm
頻率 frequency：	13M	溫度OperatingTemperature	-40+125℃
Frequency Stability頻率穩定度	-	腳位Termination：	4Pad
frequencytolerance頻率容差	-	封裝類型PackageType：	4-smd
Loadcapacitance 負載電容	8pF	最小包裝數MPQ：	3000

AM13000302無源晶振,TXC耐高溫晶振,車載電子設備晶振

7XZ-32.768KBE-T	TXC CORPORATION	7XZ	XO (Standard)	32.768 kHz	CMOS
7Z-38.400MBG-T	TXC CORPORATION	7Z	TCXO	38.4 MHz	Clipped Sine Wave
7Z-26.000MBG-T	TXC CORPORATION	7Z	TCXO	26 MHz	Clipped Sine Wave
CX-100.000MBE-T	TXC CORPORATION	CX	XO (Standard)	100 MHz	HCSL
7X-50.000MBE-T	TXC CORPORATION	7X	XO (Standard)	50 MHz	CMOS
7C-25.000MBE-T	TXC CORPORATION	7C	XO (Standard)	25 MHz	CMOS
7C-40.000MBE-T	TXC CORPORATION	7C	XO (Standard)	40 MHz	CMOS
8W-24.000MBE-T	TXC CORPORATION	8W	XO (Standard)	24 MHz	CMOS
7C-25.000MCB-T	TXC CORPORATION	7C	XO (Standard)	25 MHz	CMOS
7C-26.000MBB-T	TXC CORPORATION	7C	XO (Standard)	26 MHz	CMOS
7C-28.63636MBB-T	TXC CORPORATION	7C	XO (Standard)	28.63636 MHz	CMOS
7X-19.200MBA-T	TXC CORPORATION	7X	XO (Standard)	19.2 MHz	CMOS
8WE-33.333MBM-T	TXC CORPORATION	8WE	XO (Standard)	33.333 MHz	CMOS (Low EMI)
7X-26.000MBA-T	TXC CORPORATION	7X	XO (Standard)	26 MHz	CMOS
8WE-24.000MDM-T	TXC CORPORATION	8WE	XO (Standard)	24 MHz	CMOS (Low EMI)
7X-26.000MBB-T	TXC CORPORATION	7X	XO (Standard)	26 MHz	CMOS
7X-48.000MBB-T	TXC CORPORATION	7X	XO (Standard)	48 MHz	CMOS
AU-12.288MBE-T	TXC CORPORATION	AU	XO (Standard)	12.288 MHz	CMOS
AU-24.000MBE-T	TXC CORPORATION	AU	XO (Standard)	24 MHz	CMOS
AU-50.000MBE-T	TXC CORPORATION	AU	XO (Standard)	50 MHz	CMOS
7C-26.000MBA-T	TXC CORPORATION	7C	XO (Standard)	26 MHz	CMOS
7C-25.000MBA-T	TXC CORPORATION	7C	XO (Standard)	25 MHz	CMOS
BX-100.000MBE-T	TXC CORPORATION	BX	XO (Standard)	100 MHz	HCSL
7N-20.000MBP-T	TXC CORPORATION	7N	TCXO	20 MHz	CMOS
7N-12.800MBP-T	TXC CORPORATION	7N	TCXO	12.8 MHz	CMOS
7X-25.000MBE-T	TXC CORPORATION	7X	XO (Standard)	25 MHz	CMOS
7C-4.000MBB-T	TXC CORPORATION	7C	XO (Standard)	4 MHz	CMOS
8WE-25.000MDM-T	TXC CORPORATION	8WE	XO (Standard)	25 MHz	CMOS (Low EMI)
8WE-38.400MDM-T	TXC CORPORATION	8WE	XO (Standard)	38.4 MHz	CMOS (Low EMI)
8NE-25.000MBM-T	TXC CORPORATION	8NE	XO (Standard)	25 MHz	CMOS (Low EMI)
8WE-24.000MBM-T	TXC CORPORATION	8WE	XO (Standard)	24 MHz	CMOS (Low EMI)
AU-25.000MBE-T	TXC CORPORATION	AU	XO (Standard)	25 MHz	CMOS
AU-26.000MBE-T	TXC CORPORATION	AU	XO (Standard)	26 MHz	CMOS
7Z-26.000MDS-T	TXC CORPORATION	7Z	VCTCXO	26 MHz	Clipped Sine Wave
7Z-26.000MDG-T	TXC CORPORATION	7Z	TCXO	26 MHz	Clipped Sine Wave
BR-61.4400MBE-T	TXC CORPORATION	BR	VCXO	61.44 MHz	CMOS
8WE-33.333MDM-T	TXC CORPORATION	8WE	XO (Standard)	33.333 MHz	CMOS (Low EMI)
8NE-24.576MDM-T	TXC CORPORATION	8NE	XO (Standard)	24.576 MHz	CMOS (Low EMI)
8WE-30.000MBM-T	TXC CORPORATION	8WE	XO (Standard)	30 MHz	CMOS (Low EMI)
8NE-24.000MBM-T	TXC CORPORATION	8NE	XO (Standard)	24 MHz	CMOS (Low EMI)
8WE-27.000MDM-T	TXC CORPORATION	8WE	XO (Standard)	27 MHz	CMOS (Low EMI)
TD-7.3728MBD-T	TXC CORPORATION	TD	XO (Standard)	7.3728 MHz	CMOS
7XZ-32.768KBA-T	TXC CORPORATION	7XZ	XO (Standard)	32.768 kHz	CMOS
7XZ-32.768KDA-T	TXC CORPORATION	7XZ	XO (Standard)	32.768 kHz	CMOS
7W-36.000MBB-T	TXC CORPORATION	7W	XO (Standard)	36 MHz	CMOS
8NE-25.000MDM-T	TXC CORPORATION	8NE	XO (Standard)	25 MHz	CMOS (Low EMI)
7X-38.400MBE-T	TXC CORPORATION	7X	XO (Standard)	38.4 MHz	CMOS
7W-10.000MBE-T	TXC CORPORATION	7W	XO (Standard)	10 MHz	CMOS
7X-30.000MBE-T	TXC CORPORATION	7X	XO (Standard)	30 MHz	CMOS
7X-26.000MBE-T	TXC CORPORATION	7X	XO (Standard)	26 MHz	CMOS
7C-50.000MBE-T	TXC CORPORATION	7C	XO (Standard)	50 MHz	CMOS
8W-26.000MBE-T	TXC CORPORATION	8W	XO (Standard)	26 MHz	CMOS
8W-13.000MBE-T	TXC CORPORATION	8W	XO (Standard)	13 MHz	CMOS
7X-30.000MBB-T	TXC CORPORATION	7X	XO (Standard)	30 MHz	CMOS
8W-20.000MBE-T	TXC CORPORATION	8W	XO (Standard)	20 MHz	CMOS
7C-40.000MCB-T	TXC CORPORATION	7C	XO (Standard)	40 MHz	CMOS
7C-24.576MBA-T	TXC CORPORATION	7C	XO (Standard)	24.576 MHz	CMOS
8NE-24.576MBM-T	TXC CORPORATION	8NE	XO (Standard)	24.576 MHz	CMOS (Low EMI)
8WE-20.000MBM-T	TXC CORPORATION	8WE	XO (Standard)	20 MHz	CMOS (Low EMI)
8NE-27.000MBM-T	TXC CORPORATION	8NE	XO (Standard)	27 MHz	CMOS (Low EMI)
